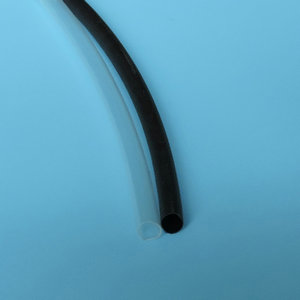

Military Standard 135 °C (2X) (3X) (4X) Flame Retardant Heat Shrink Tubing

【Features】

• Meets UL 224, CAN / CSA C22.2 NO198.1 -99
• Heat shrink ratio: 2:1, 3:1, 4:1
• Halogen-free, low-smoke emission , non-toxic , flexible , flame retardant , swiftly shrinking
• Min shrink temperature: 70 °C
• Min full recovery temperature: 120 °C
• Continuous operating temperature : -55 °C ~ 135°C
• Environmental standards: RoHS, IPC/JEDE C-J-STD-709 Class H material
• Standard colors: Black, White, Red , Yellow ,Green, Blue。 More colors are available upon request.

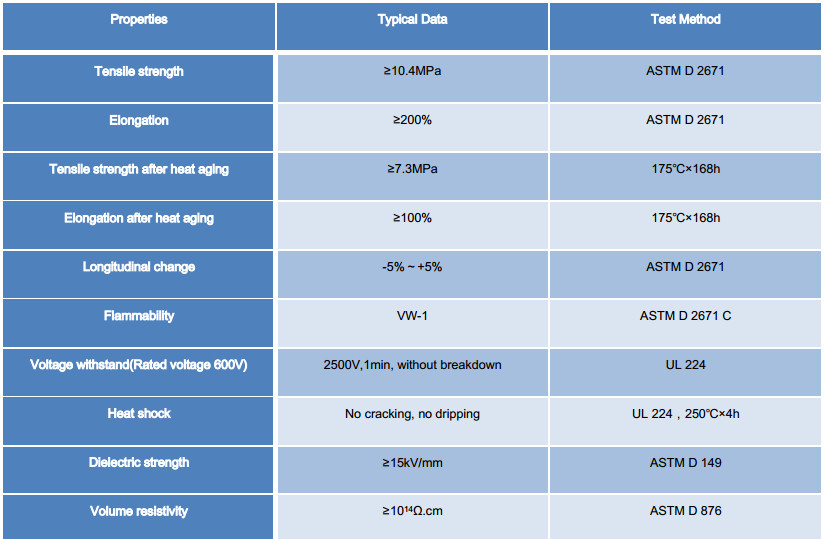

【Technical Performance】

【Structure】

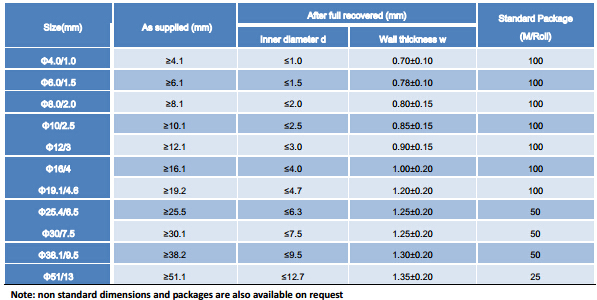

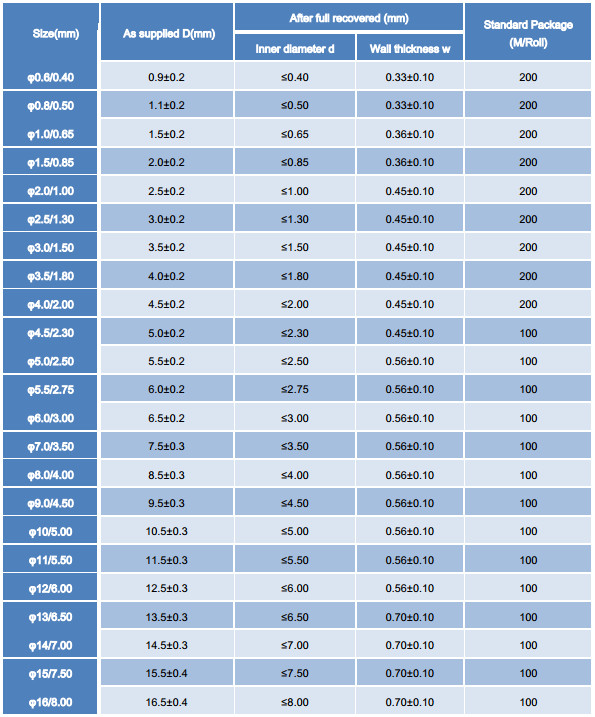

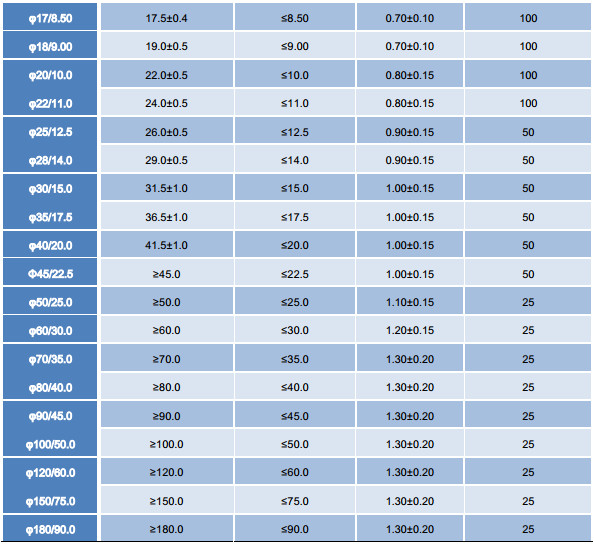

【Dimensions】

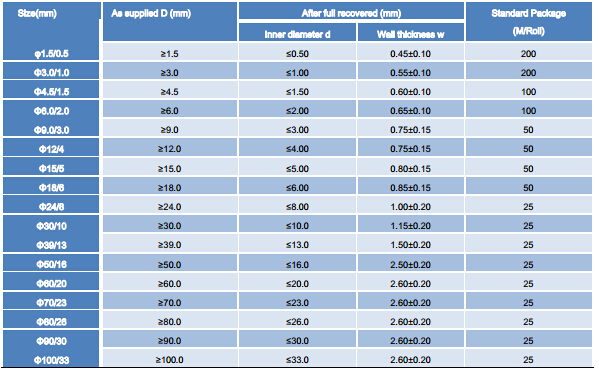

Shrink Ratio:3:1

Shrink Ratio:4:1
