Halogen-free Flame Retardant Heat Shrinkable Tubing

【Features】

• Meets UL 224, CAN / CSA C22.2 NO198.1 -99
• Heat shrink ratio : 2:1,3:1
• Halogen-free , low-smoke generations , non-toxic , flexible , fire retardant
• Min. shrink temperature : 84 °C
• Min. full recovery temperature :120 °C
• Continuous operating temperature : -55 °C ~ 125°C
• Environmental standards : RoHS , IPC/JEDEC-J-STD-709 Class H material
• Standard colors: Black, White, Red , Yellow ,Green, Blue ,Clear. More colors are available upon request.

【Technical Performance】

【Structure】

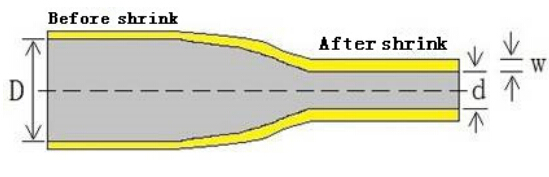

【Dimensions】
